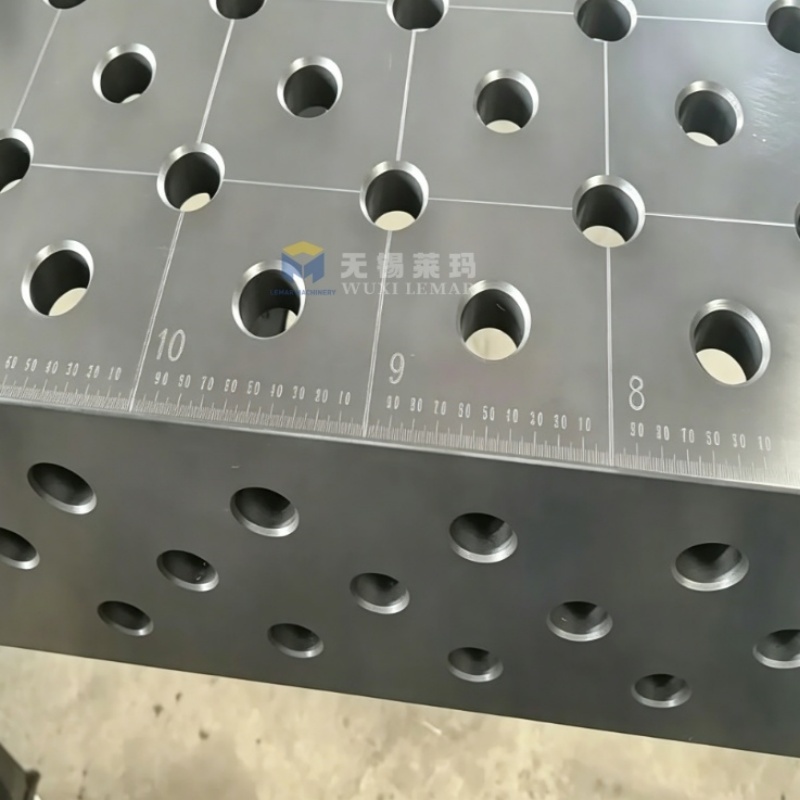

New D28 3D Welding Fixture Table With Clamping Accessories Kit
As a professional manufacturer of 3D welding worktables, we proudly present the New D28 3D Welding Fixture Table With Clamping Accessories Kit, a one-stop fixturing package tailored for metal fabricators of all scales. Different from ordinary 2D welding plates, our 5-sided D28 platform supports vertical, horizontal and angled clamping to handle irregular workpieces effortlessly. Every table undergoes strict stress relief treatment and precision CNC milling to guarantee stable accuracy for over a decade. The matched full clamping accessories kit covers all daily positioning and fixing demands, so you receive a fully functional workstation upon delivery without separate accessory sourcing. Whether you run a small welding shop or a large automated robotic workshop, this D28 3D welding fixture table will optimize your production flow and bring remarkable cost savings year after year.Basic Table Core Specifications
| Item |
Parameter Details |
| Standard Hole System |
D28, Hole Diameter Φ28mm, Internal M16 Thread |
| Grid Pitch |
Main area: 100×100mm; Edge dense holes: 50mm spacing |
| Machining Structure |
5-sided full CNC machining (Top + 4 vertical sides) |
| Standard Available Sizes (mm) |
1000×800 / 1200×1000 / 1500×1000 / 2000×1000 / 2400×1200
Custom sizes from 1000×800 up to 4000×2000 available |
| Tabletop Thickness |
25mm |
| Tabletop Material |
Option 1: Q355 Steel Plate
Option 2: HT250 / HT300 Grey Cast Iron |
Core Advantages of "3D" Technology
Standard 2D welding tables offer only planar positioning; in contrast, 3D five-sided machining tables (featuring D28 holes on the top surface and all four vertical sides) enable:
- X/Y axes: Positioning at any location on the plane
- Z-axis: Height adjustment of the workpiece using support blocks
- Vertical, inclined, or inverted clamping: Side holes allow for the securing of right-angle components, housings, and complex bent parts; complex workpieces do not require custom-made molds, and fixtures can be rapidly reconfigured within minutes
Highlights of the New Upgraded Version
Thickened nitrided layer (0.25-0.35 mm): weld spatter flakes off easily; maintains precision for over 10 years (compared to 1-2 years for standard sprayed models before wear causes accuracy loss)
High-density side hole pattern: increases positioning points by 80% and offers greater flexibility for clamping irregularly shaped workpieces
Standardized complete fixture sets: no need for separate component selection; shipped as a complete package, ready for immediate use upon unboxing
Optimized load-bearing reinforcement ribs: 40% greater resistance to deformation under high welding temperatures
CE industrial safety certified: meets European and American workshop equipment standards; suitable for export
FAQ
Q: What accuracy can this D28 welding fixture table reach?
A: Strict CNC machined flatness 0.1mm per meter, stable long-term precision after double stress relief treatment
Q: What is the warranty of this welding fixture table set?
A: 2-year warranty for nitrided tabletop, 1-year warranty for all clamping accessories in normal working conditions
Q: Can I customize the D28 modular welding jig package?
A: Yes, support custom table size, accessory quantity, laser brand logo, mobile casters and full dense 50mm hole layout
Q: How do you pack and ship the welding table and clamping accessories kit?
A: IPPC export wooden crate + separate iron storage box for all clamping accessories. Sea freight for mass orders, air freight for urgent samples
Q: Are our D28 clamping accessories compatible with other brand welding tables?
A: Fully universal global D28 standard, all clamping accessories fit mainstream international D28 welding fixture tables perfectly
Stop wasting money on single-purpose custom fixtures. Our New D28 3D Welding Fixture Table With Clamping Accessories Kit delivers all-in-one flexible fixturing for robotic and manual welding. We provide full technical support, complete export documents and long-term after-sales service. Feel free to leave your message, and we will reply within 24 hours with professional solutions for your production line.
