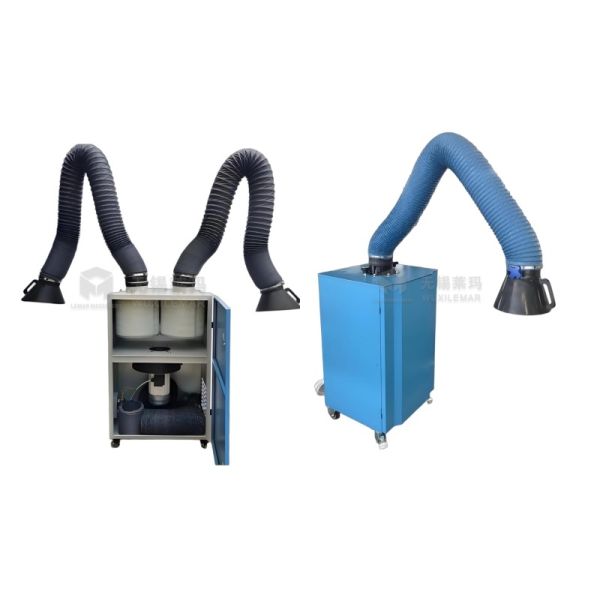

Mobile Welding Fume Collector with Flexible Suction Arm Design
The Mobile Welding Fume Collector with Flexible Suction Arm Design is a mobile environmental protection device specifically engineered for industrial welding applications. This system captures fumes and dust at the source through a flexible suction arm, then purifies the air through multi-stage filtration before discharging compliant, clean air. Ideal for dust-generating operations including arc welding, gas shielded welding, cutting, and grinding, this collector is perfect for production environments with non-fixed workstations.
Technical Specifications
| Parameter Item |
Typical Value |
Explanation |
| Power |
1.1-2.2 kW |
Single-arm motors typically use 1.1-1.5 kW, while dual-arm motors use 2.2 kW |
| Air Volume |
1200-2500 m³/h |
Determines single/double solder joint compatibility |
| Filtration Efficiency |
≥99.97% (@0.3μm) |
Key industry indicators, some achieving filtration accuracy down to 0.1μm |
| Suction Arm |
Φ160×2000/3000 mm |
Length can be selected according to workstation layout; single or double arm options available |
| Cleaning Method |
Automatic pulse backflush |
Compressed air pressure: 0.5-0.7 MPa |
| Noise |
≤75 dB(A) |
Meets workshop noise standards, with some models offering even lower levels |
| Certification |
CE, UL, ISO |
Essential for exports, ensuring safety and environmental compliance |
Core Advantages
- Flexible and Efficient: The suction arm moves with the workstation, providing precise positioning and significantly higher smoke capture efficiency than ordinary exhaust fans
- Compliant and Low-Energy Consumption: Clean air is circulated indoors, reducing air conditioning energy consumption; pulse cleaning reduces filter replacement costs
- Easy to Deploy and Maintain: No pre-installed ductwork required, ready to use out of the box; the dust collection box and filter cartridges are easy to disassemble and maintain
Safety Features
- Anti-Spark and Flame-Retardant System: The suction arm and air duct are made of high-temperature resistant and flame-retardant materials to prevent welding sparks from igniting the equipment
- Anti-Static Structure: The entire machine is treated with anti-static coating to prevent static dust accumulation, making it suitable for flammable and explosive dust environments
- Overload and Overheat Protection: Automatic overload and overheat protection for the motor extends its service life and improves operational safety
- Emergency Stop Function: Equipped with an emergency stop switch for immediate shutdown in case of emergencies
Energy Saving and Operating Costs
Low Energy Consumption
Mainstream single-arm models have a power consumption of only 1.1-1.5kW, resulting in low power consumption during continuous operation.
Energy-Saving Air Circulation
Purified air is circulated indoors, eliminating the need for exhaust ventilation and preventing the loss of workshop heating/cooling air, significantly reducing air conditioning/heating energy consumption.
Low Maintenance Costs
- Automatic pulse cleaning extends filter cartridge lifespan
- Filter cartridges can be repeatedly cleaned and reused, with a lifespan of 6-12 months under normal operating conditions
- No easily damaged or consumable parts; only periodic cleaning of the dust collection area and inspection of the filter cartridges are required
Ease of Use
Ready to Use Immediately
The Mobile Welding Fume Collector with Flexible Suction Arm Design is plug-and-play, requiring no piping or construction.
Freely Movable
The Mobile Welding Fume Collector with Flexible Suction Arm Design features four durable casters, two of which have brakes, allowing for immediate use at any welding station.
Hands-Free Suction Arm
The flexible suction arm has a built-in support frame, allowing for 360° rotation, hovering at any angle, and self-locking, eliminating the need for constant hand support.
Adjustable Airflow
The Mobile Welding Fume Collector with Flexible Suction Arm Design allows for adjustable suction power based on the size of the weld and the amount of smoke, saving energy and providing greater comfort.
