3 Ton Rotary Welding Positioner Turntable 1200mm Diameter 0.05 - 1 Rpm

Name: 3 Ton Rotary Welding Positioner Turntable 1200mm Diameter 005 1 Rpm
Brand: Lemar
Price: 500 USD

Wholesale 3 Ton Rotary Welding Positioner Turntable 1200mm Diameter 0.05 - 1 Rpm from china suppliers

Brand Name : Lemar

Model Number : LMH-3

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : 500USD

Payment Terms : L/C,D/A,T/T,D/P,Western Union

Supply Ability : 500pcs/month

Delivery Time : 15 days

Packaging Details : Wooden box

Loading weight : 3000kg

Model : LMH-3

Rotating Speed : 0.05-1 rpm

Turntable Diameter : φ1200

Rotate Motor : 1.5kw

OEM : Yes

Contact Now

3 Ton Welding Turntable Rotary Positioner

The 3 Ton Welding Turntable rotary positioner is designed for optimal workpiece repositioning during welding operations, enhancing both efficiency and quality in industrial manufacturing processes.

Key Benefits

Optimized Welding Positions: Transforms complex welding positions (flat, vertical, overhead) into ideal positions for both manual and automated welding systems
Increased Production Efficiency: Enables continuous welding processes with automated equipment, reducing clamping and adjustment time
Improved Welding Quality: Stable rotation speed ensures precise, uniform weld trajectories for consistent, aesthetically pleasing results
Reduced Labor Intensity: Operators can work from comfortable positions without strenuous movement around large workpieces

Technical Specifications

Model	LMH-3
Loading Capacity	3000 kg
Rotating Speed	0.05 - 1 rpm
Turntable Diameter	φ1200 mm
Rotate Motor	1.5 kW
Speed Control Method	Wireless frequency conversion
Drive Method	Reducer + motor

Wide range of applications

Construction Machinery:Welding large structural components such as loader rear frames, road roller frames, and excavator buckets.
Automotive Manufacturing:Used for automated welding of commercial vehicle front axle beams and passenger car chassis components
Pipes and Containers:Used in conjunction with welding manipulators to achieve automated welding of flanges, pipe joints, and circumferential seams in cylinders.
In Collaboration with Robots:As a key peripheral device in robotic welding workstations, welding turntable enables precise repositioning of complex workpieces, achieving automated production.

3 Ton Rotary Welding Positioner Turntable 1200mm Diameter 0.05 - 1 Rpm

Product Tags:

3 Ton welding positioner turntable

welding positioner turntable 1200mm

rotary welding positioner 1rpm

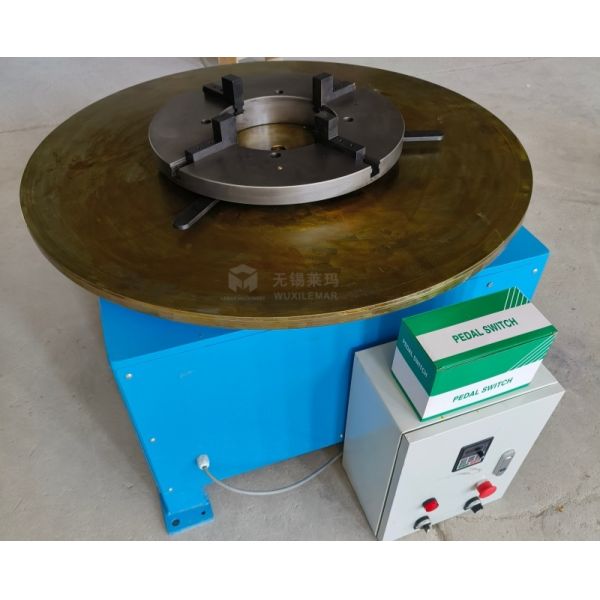

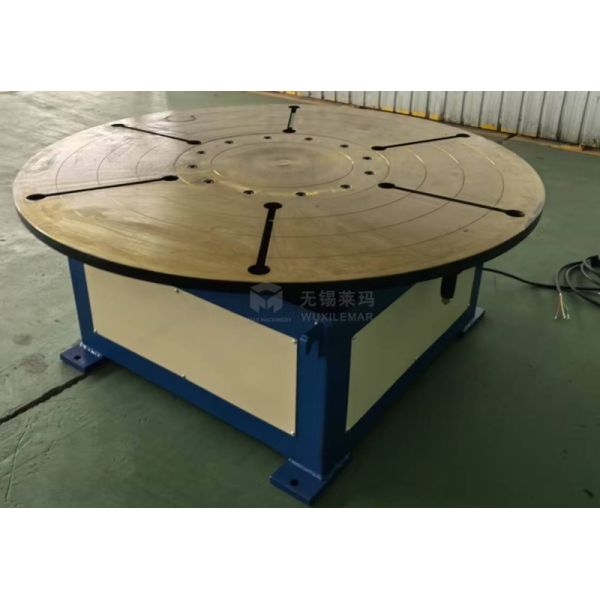

3 Ton Rotary Welding Positioner Turntable 1200mm Diameter 0.05 - 1 Rpm Images
